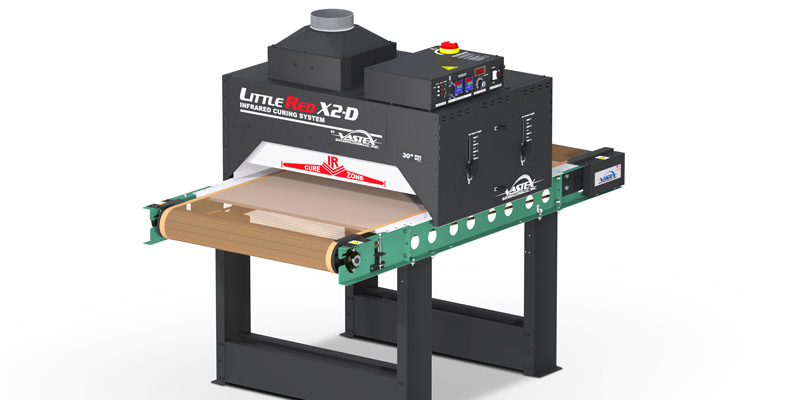

Little Red X2D
For Plastisol, Water-Based, Discharge and DTG Digital White Ink, and/or DTF adhesives
The LittleRed® X2D features radically new heat mapping that speeds the curing of ink jet, water-based and discharge inks, as well as DTG-digital inks, plastisol and/or DTF adhesives, making the X2D an unbeatable value for smaller shops. The modular design allows for expandability to easily add chambers and conveyor length as production needs increase.
The X2D model comes with a high powered pre-heating zone that surges ink temperatures to over 149°C within the first several inches of conveyor travel inside the 69 cm heating chamber. Two closely spaced, height adjustable infrared heaters and dual zone heat controls maintain consistent temperatures needed for DTG and all other inks. Rapid preheating maximizes the dwell time for each kind of ink, allowing increased conveyor belt speeds and dryer output.
Model X2D-30 has a 76 cm wide belt, two 61 cm wide infrared heaters (6300W @ 240V total wattage), and cures up to 240+ garments per hour with plastisol inks, up to 122+ garments per hour with water-based inks, and up to 34 garments per hour with DTG/digital white ink at 3 minutes dwell time.
This model comes with a powered exhaust system as standard to rapidly remove moisture and air contaminates from the heating chamber, as well as to cool the skin and controls.
The conveyor length is 168 cm, with a low friction belt aligner and belt speed controls to precisely set dwell times from 35 seconds up to four minutes.
The heaters of all Vastex dryers carry an industry-leading 15-year warranty, and feature closely spaced coils to provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under curing associated with conventional units.
OPTIONS
- Additional heating chambers and conveyor belt extensions
- Locking casters for mobility
- Creeper gear
