Little Red X1D

Smallest Conveyor Dryer available for DTG printing

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

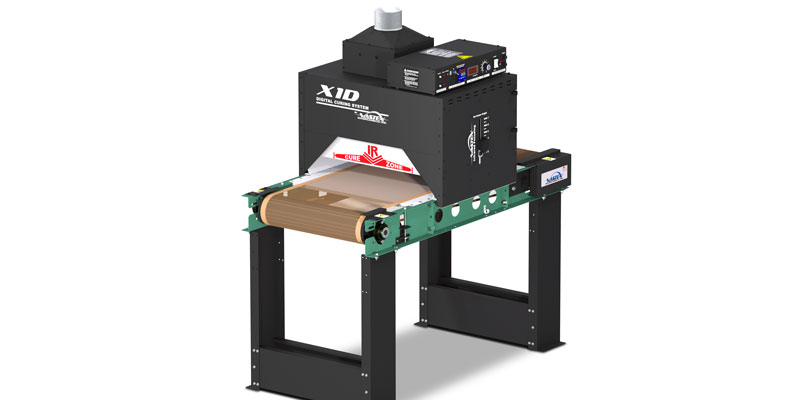

Available in three widths, the X1D is the smallest conveyor dryer matched to the output of the most popular DTG printing systems. Its heating chamber has a boost zone to quickly reach cure temperatures for ink jet, water-based inks and discharge, and/or DTF adhesives. The modular design allows for expandability to easily add chambers and conveyor length as production needs increase.

Διαθέσιμο σε τρία πλάτη, το X1D είναι ο μικρότερος φούρνος στεγνώματος μελανιού για εκτύπωση DTG. Ο θάλαμος

The LittleRed^® X1D-18 with an 46 cm wide conveyor belt has a heating chamber the full width of the belt, and can dry Digital White Ink at rates up to 34 pieces per hour at 2 minutes dwell time, or up to 81 garments/hr with water-based ink or discharge, and cure up to 162 garments per hour with plastisol ink.

The LittleRed^® X1D-30 with a 76 cm wide conveyor belt features a 61 cm wide heater and can dry Digital White Ink at rates up to 29 pieces per hour at 2 minutes dwell time, or up to 65 garments/hr with water-based ink or discharge, and cure up to 150 garments per hour with plastisol ink.

For larger garments, or to increase production, the LittleRed^® X1D-54 with a 137 cm wide conveyor belt features a 122 cm wide heater and can dry Digital White Ink at rates up to 38 pieces per hour at 2 minutes dwell time, or up to 162 garments/hr with water-based ink or discharge, and cure up to 324 garments per hour with plastisol ink.

Options

Additional heating chambers and belt extensions available
Exhaust hood (EXH-18/30/54)
Locking casters for easy mobility
Creeper gear

SKU: Little Red X1D

Διαθέσιμο σε τρία πλάτη, το X1D είναι ο μικρότερος φούρνος στεγνώματος μελανιού για εκτύπωση DTG. Ο θάλαμος

Options

Additional heating chambers and belt extensions available
Exhaust hood (EXH-18/30/54)
Locking casters for easy mobility
Creeper gear

There is no further information

Products specifications

Attribute name	Attribute value
Models	LR-X1D-18 \| LR-X1D-30
Cure Time	Plastisol at 25 secs: 162+/hr \| Water Based/Discharge at 50 secs: 81+/hr \| Digital White Ink at 2 min: 34/hr, at 3 min: 23/hr. Production speeds may vary depending on ink manufacturer, humidity of shop, and other variables.
Speed	0.2 -2.8 MPM (belt speed)
Dimensions (W x D x H)	122x76x127 cm (LR-X1D-18) \| 122x105x127 (LR-X1D-30)
Weight	78 kg (LR-X1D-18) \| 100kg (LR-X1D-30)
