Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

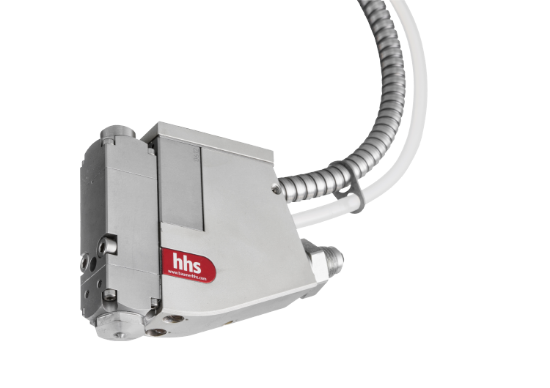

HP 500

The compact application head. With its integrated pneumatic valve, the HP-500 impresses with its compact design. It can be integrated into the tightest installation spaces and is ideally suited for integration into robotic applications, among others.

  • Small installation space
  • Great flexibility in the choice of adhesive
  • Wide range of applications
  • Extremely quiet
ID: Xmelt Electropneumatic application head - HP 500

Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

HP 500

The compact application head. With its integrated pneumatic valve, the HP-500 impresses with its compact design. It can be integrated into the tightest installation spaces and is ideally suited for integration into robotic applications, among others.

  • Small installation space
  • Great flexibility in the choice of adhesive
  • Wide range of applications
  • Extremely quiet

Нема више информација

Specifikacije proizvoda
Naziv atributa vrednost atributa
Model Xmelt HP 500
Temperature range 0 - 200 °C
Temperature sensor PT 100
Switching frequency 150 Hz (depending on nozzle size, adhesive and pressure)
Connection 9 pole AMP plug
Hose connections 1/2” UNF
Material pressure 80 bar (adhesive pressure)
Noise emission 70 dB
